Ürün ayrıntıları:
|
Ürün adı: | Kuru gıda şeker baharat tozu yapma öğütme öğütme pulverizatör makinesi | Uygulama: | Gıda, kimya, ilaç, vb |
---|---|---|---|
Malzeme: | SS 304/316 | Kapasite: | 20-1800 kg / saat |
Giriş boyutu: | <15 mm | İncelik: | 60-2500 ağ |
Kırıcı motoru: | 11-75 kW | Voltaj: | Özelleştirilmiş |
Vurgulamak: | pudra şekeri makinesi,un çekiç değirmen |
SS304 kuru gıda tozu makinesi hava sınıflandırıcı değirmen pudra şekeri taşlama makinesi

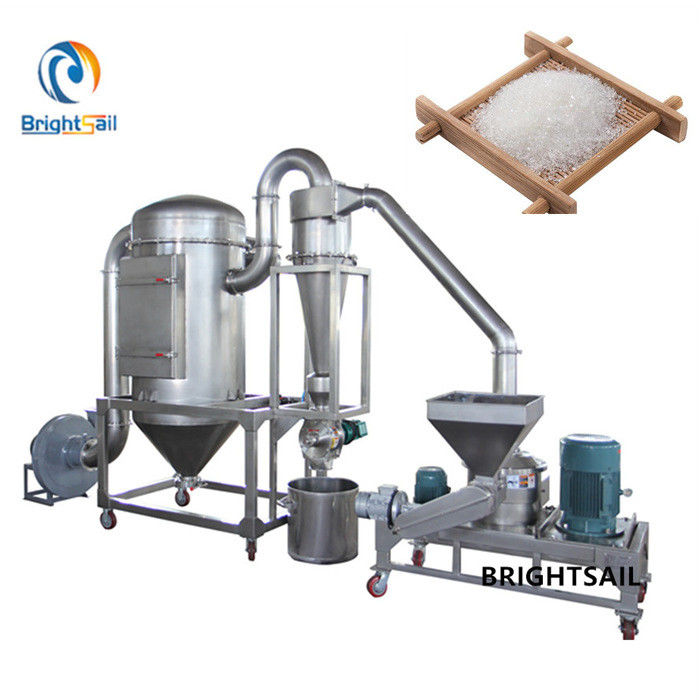

BSP ultra-fine pulverizer is a verticl shaft reflective micro crusher, can finish at the same crushing and micro powder sorting the two processes. BSP ultra-ince pulverizatör vertikl şaft yansıtıcı mikro kırıcıdır, aynı kırma ve mikro toz iki işlemi sıralayarak bitirebilir. It consists of the body, frame, feeding device, crushing equipment, discharge tube, transmission device and motor and other components, supporting the host, precipitator, high pressure centrifugal fan, shut the wind instrument,a whirlwind collector and electric control cabinet and other components of a complete set of air turbine micro powder units. Gövde, çerçeve, besleme cihazı, kırma ekipmanı, deşarj tüpü, iletim cihazı ve motor ve diğer bileşenlerden oluşur; hava türbini mikro toz ünitelerinin komple bir takımının bileşenleri. Don't stop in the case,can be arbitary regulationsize.Products of granularity, fine degrees can reach up to 60-2500mesh. Durumda durmayın, arbitary düzenlemeler olabilir. Taneciklik ürünleri, ince dereceleri 60-2500mesh kadar ulaşabilirsiniz.
Çalışma yöntemi:
The material would be conveyed by feeding system evenly to grinding chamber, and would be impacted by high-speed rotating beater, and also under the centrifugal force, it would impact the grinding track. Malzeme, öğütme haznesine eşit bir şekilde besleme sistemi ile taşınacak ve yüksek hızlı döner çırpıcıdan etkilenecek ve ayrıca merkezkaç kuvveti altında, öğütme hattını etkileyecektir. By several different pulverization powers, the material would be grinded into fine powder. Birkaç farklı toz haline getirme gücü ile, malzeme ince toz haline getirilir. The grinded powder would go with air flow up to the classifying chamber. Öğütülmüş toz, sınıflandırma odasına kadar hava akışı ile gider. With the help of adjustable classifier wheel, coarse powder and fine powder would be separated. Ayarlanabilir sınıflandırıcı çarkı ile kaba toz ve ince toz ayrılır. Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the grinding chamber to be grinded again. Nitelikli ince toz, tekerlek kanadının içinden sonra siklon ayırıcıya veya toz toplayıcıya giderken, kaba toz ve ince toz karışımı tekrar öğütülmek üzere öğütme odasına düşecektir.
Ana Özellikler:
1. bu geniş bir uyum aralığı, üretim süreci sürekli, ve deşarj taneciklik ayarlanabilir (60-2500mesh).
2. Compact design, reasonable structure, air-selective, no screen. 2. Kompakt tasarım, makul yapısı, hava seçici, hiçbir ekran. The machine is equipped with a hierarchical structure that enables comminution and grading to be completed at one time. Makine, ufalama ve derecelendirmenin aynı anda tamamlanmasını sağlayan hiyerarşik bir yapı ile donatılmıştır.
3. The crushing and grading of the materials to the finished product is carried out in the same closed system. 3. Malzemelerin bitmiş ürüne ezilmesi ve derecelendirilmesi aynı kapalı sistemde gerçekleştirilir. After dust removal treatment, it is not polluted, and it is an ideal equipment for environmental protection. Toz giderme işleminden sonra kirlenmez ve çevrenin korunması için ideal bir ekipmandır.
Şirketimiz:
Brightsail Machinery is specialized in producing pharmaceuticala machinery, food machinery, chemical mchinery and daily chemical machinery, our company is a professional machinery manufacturer integrating research, development and sale, enjoying a high reputation among our peers in the industry. Brightsail Makine eczacılık makineleri, gıda makineleri, kimyasal makine ve günlük kimyasal makine üretiminde uzmanlaşmış, firmamız profesyonel bir makine üreticisi araştırma, geliştirme ve satış entegre, sektördeki akranlarımız arasında yüksek bir şöhrete sahiptir. Our main products include: pulverizer machines,mixing machines,vibrating sifting machine,drying machine,packing and filling machine, etc. Ana ürünler: pulverizatör makineleri, karıştırma makineleri, eleme makinesi titreşimli, kurutma makinesi, paketleme ve dolum makinesi, vb.
We sincerely thank our old and new customers for your cooperation and support. İşbirliğiniz ve desteğiniz için eski ve yeni müşterilerimize içtenlikle teşekkür ederiz. We expect you to talk business with us by phone or by mail and create a brilliant future together. Bizimle telefon veya posta yoluyla iş konuşmanızı ve birlikte parlak bir gelecek yaratmanızı bekliyoruz.
Teknik veri:
model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
Giriş boyutu (mm) | <15 | <15 | <15 | <15 |
İncelik (gözenekli) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
Kapasitesi (kg / saat) | 20-200 | 40-500 | 60-800 | 120-1800 |
Ezilme motoru (kw) | 11 | 18.5 | 30 | 55 |
Sınıf motot (kw) | 1.5 | 4 | 5.5 | 11 |
Üfleyici (KW) | 7.5 | 11 | 18.5 | 37 |
Besleme motoru (kw) | 0,55 | 0,55 | 0.75 | 1.5 |
Deşarj motoru (kw) | 0.75 | 0.75 | 1.1 | 1.5 |
Prensip aksia hızı (rpm) | -6500 | -5350 | -4600 | -3100 |
Derecelendirme çark hızı (rpm) | 4000 | 4000 | 3500 | 3000 |
Ağırlık (kg) | 1600 | 1800 | 2300 | 3100 |
