Ürün ayrıntıları:
|
Ürün adı: | baharat öğütücü kırıcı pulverizatör taşlama makinesi | Voltaj: | Özelleştirilmiş |
---|---|---|---|
Uygulama: | Gıda, kimya, ilaç, vb | Malzeme: | SS304 / 316 |
Garanti: | Bir yıl | Feed boyutu: | <100mm |
Çıktı boyutu: | 0.5-20mm | Kapasite: | 50-1000 kg / saat |
Vurgulamak: | granül makinesi,toz kırma makinesi |

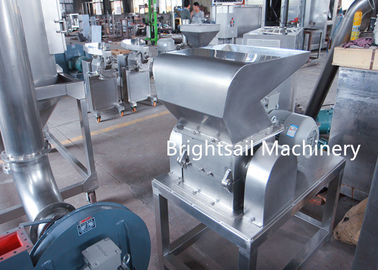

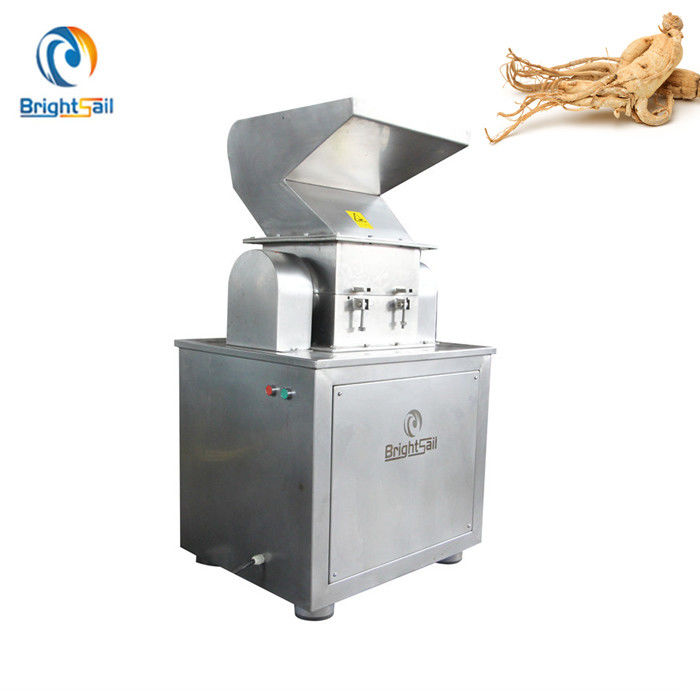

Yatay ot tozu kırıcı makine ginseng kökü granülleri yapma makinesi
In the crushing process of the chemical, pharmaceutical, food and other industries, due to the different shapes of the raw materials, it is impossible for many materials to complete the whole crushing process, often through coarse crushing, fine crushing and screening. Kimyasal, farmasötik, gıda ve diğer endüstrilerin kırma işleminde, hammaddelerin farklı şekilleri nedeniyle, çoğu malzemenin, genellikle kaba kırma, ince kırma ve eleme yoluyla tüm kırma işlemini tamamlaması imkansızdır. According to this situation, we comprehensively analyzed the characteristics of various raw materials and existing crushing equipment, and carefully developed this BSC series coarse crusher machine. Bu duruma göre, çeşitli hammaddelerin ve mevcut kırma ekipmanlarının özelliklerini kapsamlı bir şekilde analiz ettik ve bu BSC serisi kaba kırıcı makinesini dikkatlice geliştirdik.
Çalışma yöntemi:
The machine is composed of four parts: frame, motor, feed hopper and pulverizing mechanism. Makine dört bölümden oluşur: çerçeve, motor, besleme hunisi ve toz haline getirme mekanizması. The material enters the pulverizing chamber directly through the feed hopper. Malzeme toz haline getirme odasına doğrudan besleme hunisi içinden girer. The pulverizing purpose can be achieved through the powerful shearing of the moving knife and fixed knife with medium speed rotation. Toz haline getirme amacına hareketli bıçağın ve orta hızlı dönüşlü sabit bıçağın güçlü bir şekilde kesilmesi ile ulaşılabilir. The particle size can be controlled by adjusting the clearance between the moving knife and fixed knife. Parçacık boyutu, hareketli bıçak ile sabit bıçak arasındaki boşluk ayarlanarak kontrol edilebilir. Through the control of the screen, the particles that meet the requirements will be discharged from the outlet, while the materials that do not meet the requirements will continue to be cut and crushed in the crushing chamber until they meet the requirements. Ekranın kontrolü sayesinde, gereksinimleri karşılayan parçacıklar prizden boşaltılırken, gereksinimleri karşılamayan malzemeler gereksinimleri karşılayana kadar kırma odasında kesilmeye ve ezilmeye devam edecektir.
Ana Özellikler:
The machine has horizontal crushing structure and the whole machine is made of stainless steel. Makine yatay kırma yapısına sahiptir ve tüm makine paslanmaz çelikten imal edilmiştir. It has such features as compact structure, convenient operation, stable running, wearability, easy to clean, low noise, good efficiency, etc. So it is the most ideal new production in the current crusher market. Kompakt yapı, rahat çalışma, istikrarlı çalışma, giyilebilirlik, kolay temizlenebilir, düşük gürültü, iyi verimlilik vb.Gibi özelliklere sahiptir.
Neden bizi tercih:
1. bizim satıcı profesyonel, sunacak uygun ve kaliteli makine makul fiyat.
2. Tüm soruşturma veya sorun 24 saat içinde cevap verilecektir veya çözülecek
3. Biz en iyi hizmeti sunuyoruz ve makine kullanarak size soruşturma almak yardım.
4. biz kendi güçlü depolama yeteneği, yani hızlı teslimat emin olun.
5. garanti tarihi bir yıl müşteri almak makine.
Teknik veri:
model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
Kapasitesi (kg / saat)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
Giriş granüllerinin boyutu (mm)
|
<100
|
<100
|
<100
|
<100
|
Kırma İncelik (mm)
|
0,5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
Ana eksen hızı (rpm)
|
960
|
960
|
960
|
960
|
Motor gücü (KW)
|
3
|
5.5
|
7.5
|
11
|
Toplam Boyut (L * G * Y) (mm) (Tip B)
|
* 600 * 1140 900
|
* 700 * 1440 900
|
* 800 * 1440 900 |
1000 * 900 * 1440
|
Ağırlık (kg)
|
200
|
300
|
380
|
500
|
