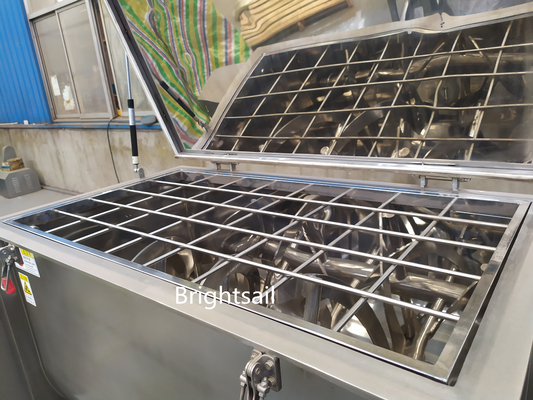

There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
Ürün ayrıntıları:
|
Mikser Tipi: | kurdele | Namlu Hacmi (L): | 20000 |
---|---|---|---|
İşlenen malzeme: | Kimyasallar, Gıda, İlaç | Maks. Yükleme Hacmi (L): | 12000 litre |
Max. Maks. Loading Capacity Yükleme kapasitesi: | 10000L | Ağırlık (kg): | 3000 Kg |
Malzeme: | SUS304, SUS316, SUS304,SUS 316, karbon çeliği | Durum: | Yeni |
ürün tipi: | şerit karıştırıcı | Başvuru: | Toz, İlaç İşleme |
Ek Yetenekler: | karıştırma sıvısı | Gerilim: | Özelleştirilmiş, Özelleştirilmiş |
Boyut(l*w*h): | yönlendiren | Güç (kW): | 2,2 kW |
Garanti: | 1 yıl | Anahtar satış noktaları: | Otomatik |
Uygulanabilir Sektörler: | Oteller, Üretim Tesisi, Yiyecek ve İçecek Fabrikası, Çiftlikler, Restoran, Yiyecek Mağazası, Yiyecek | Showroom Konumu: | Hiçbiri |
Pazarlama Türü: | Sıcak Ürün 2019 | Makine Test Raporu: | Tedarik edilen |
Görüntülü muayene: | Tedarik edilen | Temel Bileşenlerin Garantisi: | 1 yıl |
Ana bileşenler: | Motor | Satış sonrası servis sağlandı: | Denizaşırı makinelere hizmet verecek mühendisler |
Adedi: | 1 takım | Kullanım: | karıştırma tozu veya sıvı ile karıştırma tozu |
Güç(W): | 0.75KW~45KW | Kapasite: | Bağlı olmak |
Liman: | Şangay limanı |

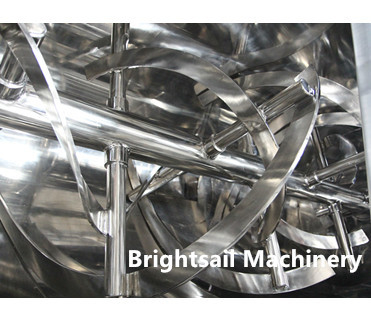

Horizontal ribbon mixer comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.
It has a very good effect for Horizontal Ribbon Mixer Medicinal Powder Mixing Machine
1) Simple structure in horizontal U shape ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ,bearings and operation parts.
3) hermetic seals are adopted on both sides of our ribbon mixer,
4) There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.

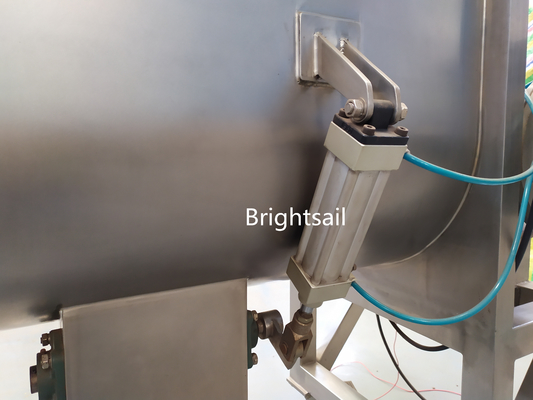

5) Pneumatic valve is adopted to discharge material
There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
Pneumatic valve is adopted to discharge material
Model | Max work volume(L) | Rotate speed (rpm) | Overall size (L*W*H) (mm) | Weight(kg) |
BSR-300 | 180 | 66 | 1550(L)*812(W)*1015(H) | 780 |
BSR -500 | 300 | 66 | 1975(L)*1059(W)*1120(H) | 955 |
BSR-1000 | 600 | 41 | 2340(L)*1380(W)*1455(H) | 1400 |
BSR-2000 | 1200 | 33 | 2480(L)*1651(W)*1805(H) | 2500 |
BSR-3000 | 1800 | 33 | 2945(L)*1896(W)*1980(H) | 3300 |
BSR-4000 | 2400 | 29 | 3038(L)*1946(W)*2205(H) | 3600 |
BSR-5000 | 3000 | 29 | 3932(L)*2010(W)*2035(H) | 4620 |
BSR-6000 | 3600 | 26 | 3938(L)*1882(W)*2246(H) | 5300 |
BSR-8000 | 4800 | 26 | 3986(L)*2160(W)*2516(H) | 6800 |
BSR-10000 | 6000 | 19 | 4500(L)*2270(W)*2667(H) | 8900 |
* Inquiry and consulting support within 24 hours
* Sample testing support.
* View our Factory.
* Instructing how to install the machine, instructing how to use the machine.
* Engineers available to service machinery overseas.
