Brightsail Leaf Air Classifier Mill Moringa leaf Grinding Machine tea leaf pulverizer set Grinder Machine

Büyük resim : Brightsail Leaf Air Classifier Mill Moringa leaf Grinding Machine tea leaf pulverizer set Grinder Machine

Ürün ayrıntıları:

Place of Origin:	Jiangsu, China
Marka adı:	BrightSail
Sertifika:	CE ISO
Model Number:	BSP

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1
Fiyat:	$13,500.00/sets >=1 sets
Packaging Details:	wooden case or container
Supply Ability:	20 Set/Sets per Month

İletişim

Brightsail Leaf Air Classifier Mill Moringa leaf Grinding Machine tea leaf pulverizer set Grinder Machine

Açıklama

Output (kg/h):	100 - 4000 kg/h	Feeding Size (mm):	0 - 15 mm
Output Size (mesh):	60 - 2500 mesh	Power (kW):	12.12
Range of Spindle Speed(r.p.m):	580 - 2900 r.p.m	Material:	SUS304, SUS316, Other, SUS304
Condition:	New	Type:	Pulverizer
Voltage:	Customized	Dimension(LWH):	Customizable
Weight (KG):	1500 KG	Warranty:	1 Year
Key Selling Points:	Automatic	Showroom Location:	None
Marketing Type:	Hot Product 2023	Machinery Test Report:	Provided
Video outgoing-inspection:	Provided	Warranty of core components:	1 Year
Core Components:	Bearing, Motor	MOQ:	1 Set
Other name:	Hammer mill	Advantage:	High Effieciency
Fineness:	60-2500 Mesh	Package:	Wooden Case
Feature:	High Efficiency Easy Operation	Port:	SHANGHAI

Brightsail Leaf Air Classifier Mill Moringa leaf Grinding Machine tea leaf pulverizer set Grinder Machine

Product Description

Introduction Moringa leaf Grinding Machine

BSP Moringa leaf Grinding Machine
is one type grinder which can make very fine powder.
It combines impact milling with integrated dynamic classification is the ideal solution for fine and ultrafine grinding of soft to
medium-hard products and is used in all areas of the industry: chemicals, food, pharma, minerals, powder coatings...

Brightsail Moringa leaf Grinding Machine can make 60~2500 mesh based on different raw material, for example:
For sugar and salt grinding, the output size can be 100~1000 mesh fine powder. For spice powder like turmeric, ginger and garlic
grinding, the output size can be 60~400 mesh fine powder.
For herbal leaf grinding like licorice root, moringa leaf, green tea leaf, the output size can be 60~500 mesh.
For chemical powder grinding like Lithium Stearate, Zinc Stearate, tale, the output size can be 200~10000 mesh based on customer's
requests.

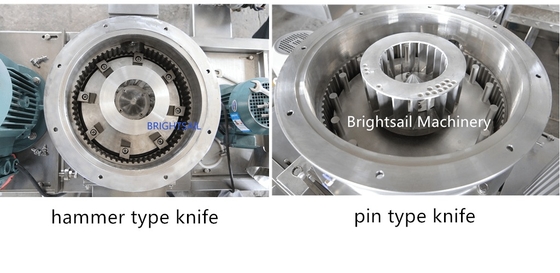

There are two types of knives, hammer type and pin type.Hammer type is standard knife type, which is suitable for various kinds of
raw material, spice, chemical, foods, herbs, grains...
Pin type is customized for crystal material grinding like sugar, salt...with high productivity.

Two types classifier wheel positions:

1) Classifier-lower type: standard type adopts on model BSP-250, BSP-350, BSP-450, and BSP-500.
2) Classifier-upper type: easier cleaning, better stability of mechanical properties and more expensive compared with classifier -lower type.
We recommend the most suitable type based on the characteristic of raw materials, and customers' requirements.

IMPORTANT FEATURES of our Creatine Powder Supplement Grinding Machine:

1. By changing the air volume and classifying rotor speed, the particle size can be easily adjusted. This allows the operator
to change product sizes during operation as well.
2. Grinding and Classifying in one machine, Compact footprint

3. Cool and gentle grinding by using water cooling system or
equipped with a industrial chiller

4. Steep particle size distributions, Sharp top cut control

5. Easily adjustable cut point,
Easy to clean and maintain

6. High availability, Low noise emission, Low specific energy consumption

7. Pressure-shock resistant and wear-protected, Suitable for combined grinding and drying

Technical Data of ACM Pulverizer:

Model	BSP-250	BSP-350	BSP-450	BSP-500	BSP-750	BSP-900	BSP-1000
Capacity (kg/h)	10-100	20-200	40-500	50-800	120-1800	800-2500	1000-3600
Input size (mm)	＜ 8	＜ 15	＜ 15	＜ 15	＜ 15	＜ 20	＜ 20
Powder fineness(mesh)	60-2500	60-2500	60-2500	60-2500	60-2500	60-2500	60-2500
Crush motor(kw)	5.5	15	18.5	30	55	90	110
Classifier motor(kw)	1.5	1.5	4	5.5	11	15	18.5
Blower (kw)	4	5.5	11	18.5	37	45	75
Feed motor (kw)	0.37	0.55	0.55	1.1	1.5	2.2	2.2
Discharge motor(kw)	0.75	0.75	0.75	1.1	1.5	1.5	1.5
Speed of principle axis (rpm)	~8400	~6500	~5600	~4400	~3100	~2450	~2450
Grading impeller speed (rpm)	~4000	~4000	~4000	~8500	~3000	~3000	~3000

Working Principle :

The raw material is charged to the mill chamber via feed screw of hopper, Comminution is the result of particles impacting against
the grinding elements of the rotor and against the stationary liner. With high beater tip speeds, fineness values are achieved.
The product becomes entrained in the cooling, conveying and classifying airflow generated by the downstream fan, drawn through the
mill and routed along the guide vanes of the shroud ring.

The integrated dynamic classifier is characteristic of the ACM grinder. The product/air mixture is distributed uniformly by the guide shroud ring to the rotating classifier. Because of the two opposing forces and the different masses of the particles, the product is separated in the classifying zone into a coarse fraction and a fine fraction. The coarse mate-rial is rejected by the classifying wheel and returned to the grinding zone for further comminution. The fines pass through the cassifying wheel and exit the mill, and then discharge as final products through cyclone part. The cut point, i.e. the product's maximum particle size is a function of the classifying wheel speed, which can be infinitely adjusted even during operation.

And over fine dust is sent to the dust collecting box, to make the full production free from dust.

Detailed Images

Not only Air Classifying Mill

Not only Impact Type Air Classifying Mill Spice grinding machine, we also have other different spice & herb grinding machines for different capacity and fineness mesh.

We provide overall one-stop spice&herb product processing machines and solutions.
We provide washing machine,cutting machine,dryer,
roasting machine, crusher, grinder, pulverizer, mixer, filling and packing machines......etc

Packaging Details:

Export standard package. Wooden case or container loading.
For small machine, we pack it in wooden case.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with
steel to avoid any shaking or moving during the shipping.
